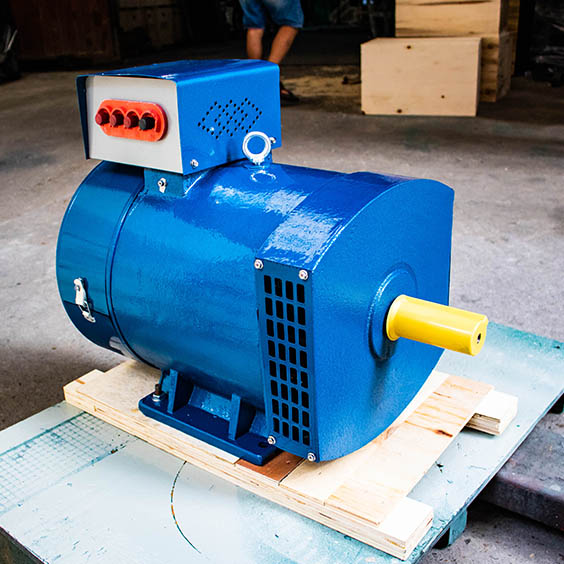

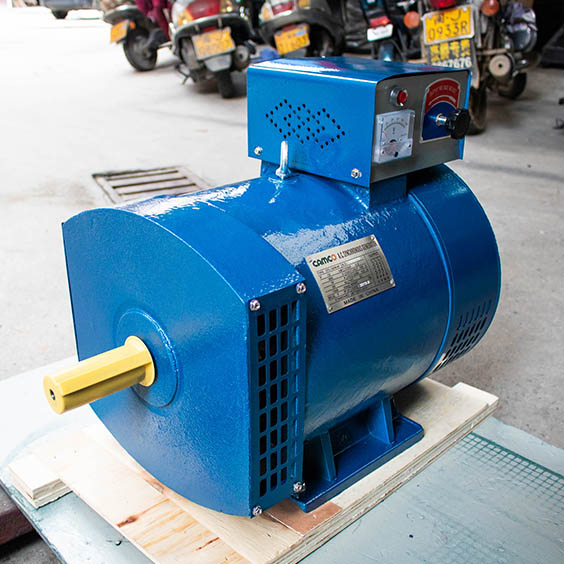

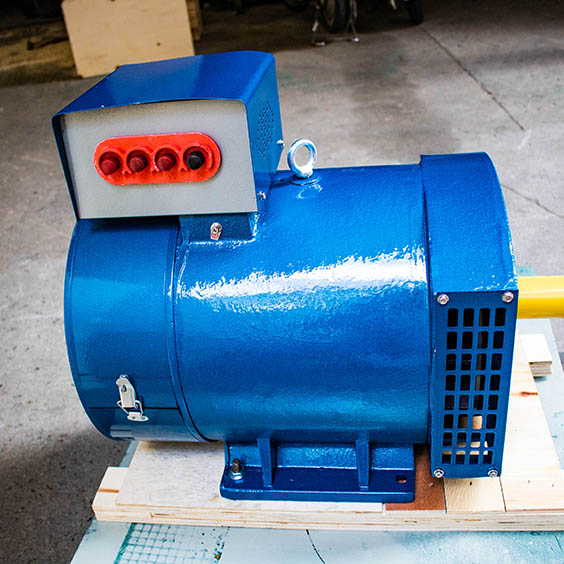

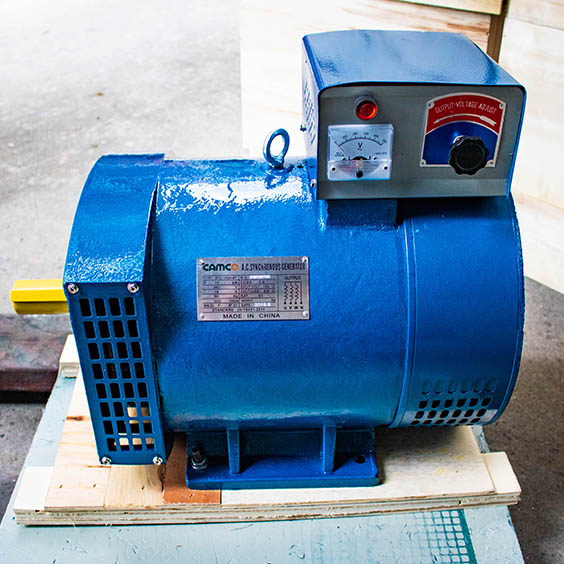

The generator of this series completed with a matching internal combustion engine is available as a stationary or movable power station to supply a lighting or power resource for village, towns, working sites and pasture-lands.
It is of three-phase with neutral point star connsction, characterized by a line voltage of 400V, phase voltage of 230V, frequency of 50Hz, and power factor of 0.8(lagglng). We can provide with 60Hz and other value generators which the users are necessity.
The connection of the generator to the prime mover may be made directly or by means of a triangle belt. Its rotation can be in both positive and opposite sense for continuous rated duty.
In order to permit the machine to produce current In Its normal running, It Is well-advised to get yourself informed form the present instruction manual before hand.
| Model | Output | Installation Size(mm) | Overall Dimension(mm) | |||||||||||||||
| KW | kva | A | B | C | D | E | F | G | H | k | a | b | hi | h | l1 | L2 | g | |
| STC-3 | 3 | 3.8 | 216 | 178 | 89 | 032 | 80 | 10 | 27 | 132 | 12 | 34 | 250 | 18 | 400 | 480 | 270 | 34.8 |
| STC-5 | 5 | 6.3 | 254 | 254 | 108 | *38 | 80 | 12 | 33 | 160 | 15 | 50 | 310 | 25 | 455 | 580 | 325 | 40.8 |
| STC-8 | 8 | 10 | 254 | 254 | 108 | 038 | 80 | 10 | 33 | 160 | 15 | 50 | 310 | 25 | 455 | 580 | 325 | 40.8 |
| STC-10 | 10 | 12.5 | 279 | 203 | 121 | *42 | 110 | 12 | 37 | 180 | 15 | 60 | 339 | 25 | 495 | 610 | 365 | 44.8 |
| STC-12 | 12 | 15 | 279 | 203 | 121 | 042 | 110 | 12 | 37 | 180 | 15 | 60 | 339 | 25 | 495 | 610 | 365 | 44.8 |
| STC-15 | 15 | 18.8 | 279 | 203 | 121 | *42 | 110 | 12 | 37 | 180 | 15 | 60 | 339 | 25 | 495 | 610 | 365 | 44.8 |
| STC-20 | 20 | 25 | 318 | 228 | 133 | *48 | 110 | 14 | 42.5 | 200 | 19 | 60 | 378 | 30 | 540 | 660 | 400 | 51.2 |
| STC-24 | 24 | 30 | 318 | 286 | 133 | 048 | 110 | 14 | 42.5 | 200 | 19 | 60 | 378 | 30 | 540 | 660 | 400 | 51.2 |
| STC-30 | 30 | 37.5 | 356 | 286 | 149 | *60 | 140 | 18 | 53 | 225 | 19 | 65 | 421 | 32 | 610 | 770 | 452 | 64 |
| STC-40 | 40 | 50 | 356 | 286 | 149 | 060 | 140 | 18 | 53 | 225 | 19 | 65 | 421 | 32 | 610 | 770 | 452 | 64 |
| STC-50 | 50 | 62.5 | 356 | 311 | 149 | *60 | 140 | 18 | 53 | 225 | 19 | 65 | 421 | 32 | 610 | 810 | 452 | 64 |
| STC-64 | 64 | 80 | 406 | 349 | 171 | 070 | 140 | 20 | 62.5 | 250 | 24 | 84 | 560 | 33 | 800 | 905 | 560 | 74.5 |
| STC-75 | 75 | 80 | 406 | 349 | 171 | *70 | 140 | 20 | 62.5 | 250 | 24 | 84 | 560 | 33 | 800 | 975 | 560 | 74.5 |
