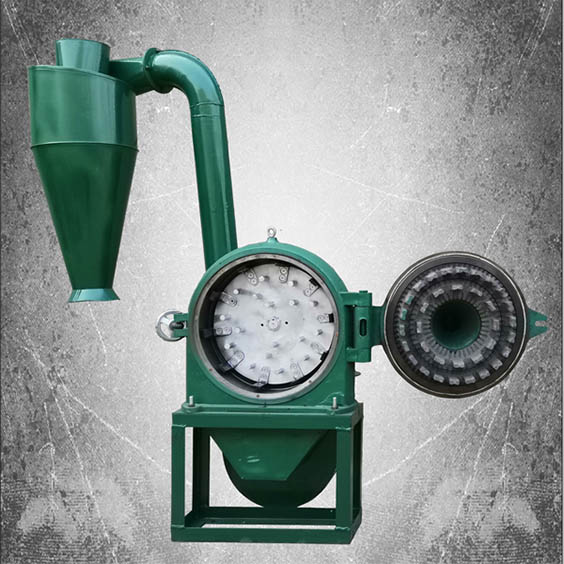

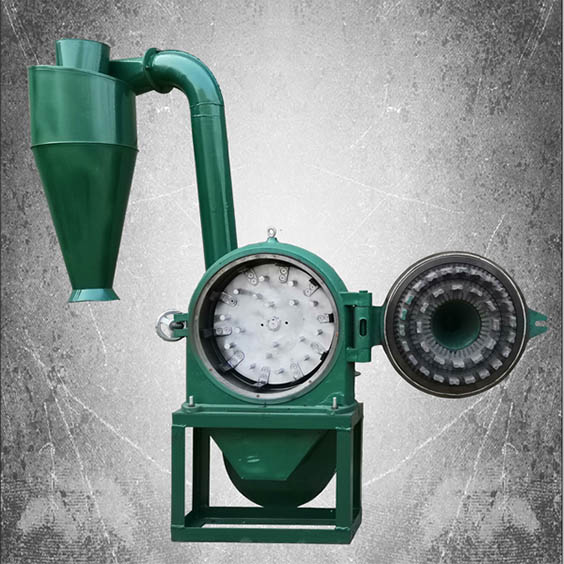

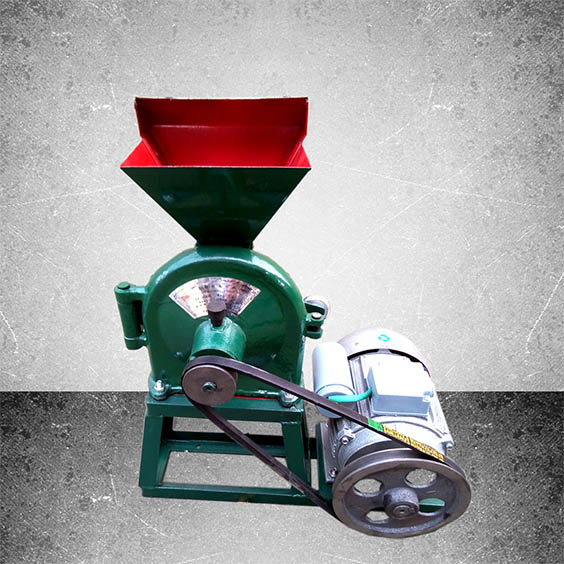

Disc Mill

Our FFC series disk mill has multiple functions. At present, there are ten types. Models FFC-60, FFC-50, FFC-45A, FFC-37, FFC-23, FFC-20, FFC-19, FFC-18, FFC-16 and FFC-15. It is designed compactly with a wonderful appearance: small in size and light in weight, reliable in operation and easy in maintenance. It has a large range of service and proves to be of high quality in crushing.
With this machine, it is most desirable to crush various coarse grains and fodder, such as corn, soybean, sorghum, dried sweet potato slices and soybean cake. All of these can be crushed into powder by one stroke without any residue.
This machine is also popular in chemical industry, paper-making and medical industry can be used to crush various kinds of chemical raw materials, exercise beating in paper making and process Chinese herbal medicine. And can also be used to crush fresh fruit, fresh sweet potato and soaked soybeans, which contain a great deal of moisture content.

Instructions for use:

The machine should be checked before using the mechanical transmission part is loose and other abnormal phenomenon, the machine running direction should be consistent with the direction of the arrow.
When in use, no-load test for 1-2 minutes, to be observed no abnormal phenomenon can feed, feed should flow increases gradually, and observe the motor power supply and operation conditions, the feeding and power balance in normal operation, fixed die cutting plate, work. – such as the material is too wet, sticky knot too big, effect of powder, should be the material drying or replace the sieve plate thick. Change the screen plate only the front cover can be opened, the installation should pay attention to both sides of the front cover handwheel consistent tightness, the front cover and the casing seal.
Before the machine is shut down, you should stop feeding and make the machine running 2-3 minutes and then stop, in order to reduce the residual material.

Maintenance and repair:

Regularly check the bearing, replace the high-speed butter, in order to ensure the normal operation of the machine.
Should always check the wearing parts, such as serious abrasion phenomenon to be timely replacement.
Use of the machine, such as the spindle speed is slowing, the motor must be down-regulation, which will enable the machine to achieve the specified speed
strictly prohibited-the metal material flows inside the machine, such as iron nail, iron block.
After the end of the work, must to clean the residual material parts of machine. Stops for a long time to clean the machine, with a tarpaulin cover.
