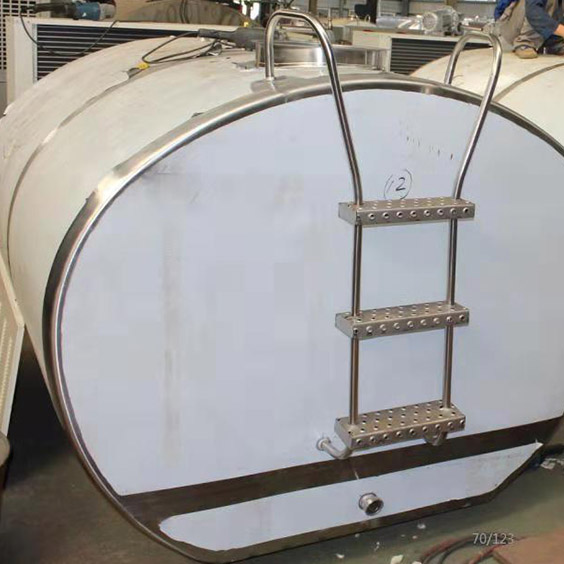

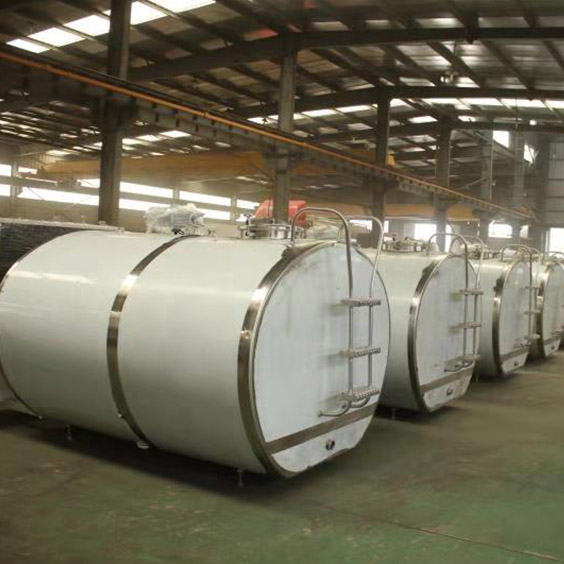

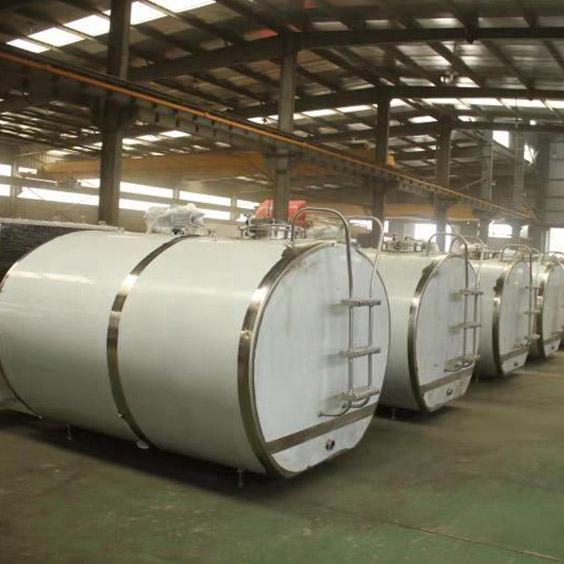

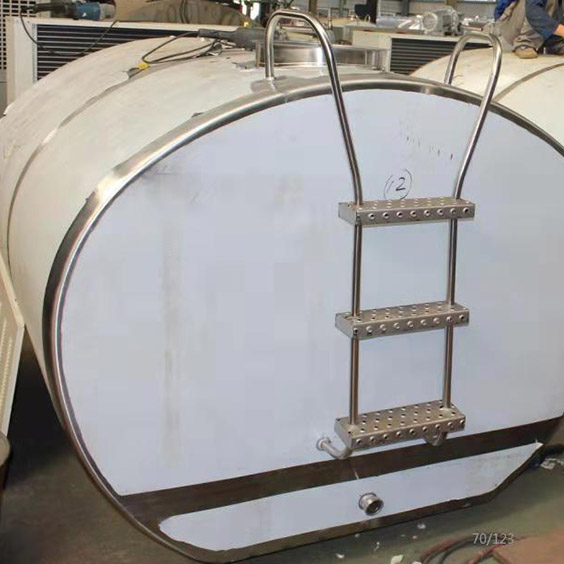

Milk Storage Tank

Functions and Features:
1. Dairy fresh-keeping refrigeration tanks are designed in strict accordance with GB / T10942-2001 standards.
2. Milk tanks are all made of food-grade stainless steel, corrosion-resistant, argon arc welding, precision polishing, beautiful and generous.
3. Arc angle design, no sanitary dead angle, more convenient cleaning.
4.60mm polyurethane insulation layer to ensure that the temperature of the milk in the tank rises ≤0.2 ℃ / hour.

5.Adopt advanced computer temperature controller for automatic temperature control of refrigeration system (according to user requirements: generally shut downat 4 ℃ and starting upat 6 ℃). Stirring time can be set according to user requirements, automatic start & stop and manual start & stop.
6.The equipment system is equipped with a variety of safety protection measures such as high pressure protection, low pressure protection, motor overload protection, power phase loss protection and circuit short circuit protection. In case of the above faults, the circuit will be automatically disconnected or alarmed, and the compressor will stop working, thereby effectively protecting the safety of the equipment.
7.Refrigeration units are all welded and Helium computer leak detection to ensure that the refrigerant does not leak.

Get a Quote Send E-mail

Products

Product-Features

Functions and Features:
1. Dairy fresh-keeping refrigeration tanks are designed in strict accordance with GB / T10942-2001 standards.
2. Milk tanks are all made of food-grade stainless steel, corrosion-resistant, argon arc welding, precision polishing, beautiful and generous.
3. Arc angle design, no sanitary dead angle, more convenient cleaning.
4.60mm polyurethane insulation layer to ensure that the temperature of the milk in the tank rises ≤0.2 ℃ / hour.

5.Adopt advanced computer temperature controller for automatic temperature control of refrigeration system (according to user requirements: generally shut downat 4 ℃ and starting upat 6 ℃). Stirring time can be set according to user requirements, automatic start & stop and manual start & stop.
6.The equipment system is equipped with a variety of safety protection measures such as high pressure protection, low pressure protection, motor overload protection, power phase loss protection and circuit short circuit protection. In case of the above faults, the circuit will be automatically disconnected or alarmed, and the compressor will stop working, thereby effectively protecting the safety of the equipment.
7.Refrigeration units are all welded and Helium computer leak detection to ensure that the refrigerant does not leak.

Specification

project TFCT-3
Nominal capacity 3000L
Size (length * width * height) 3410*1780*1680～1720

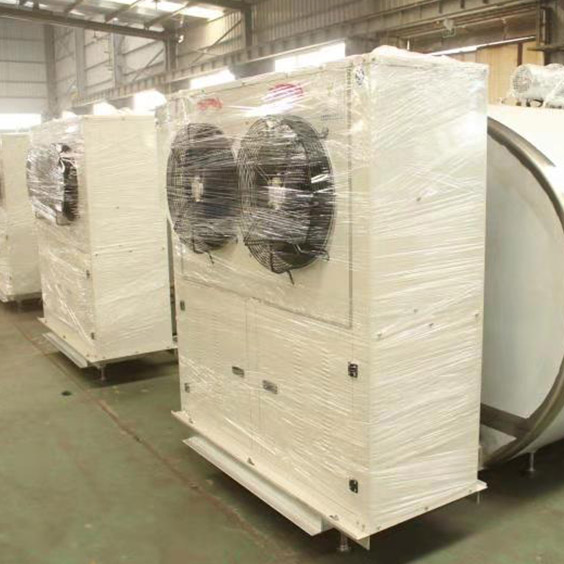

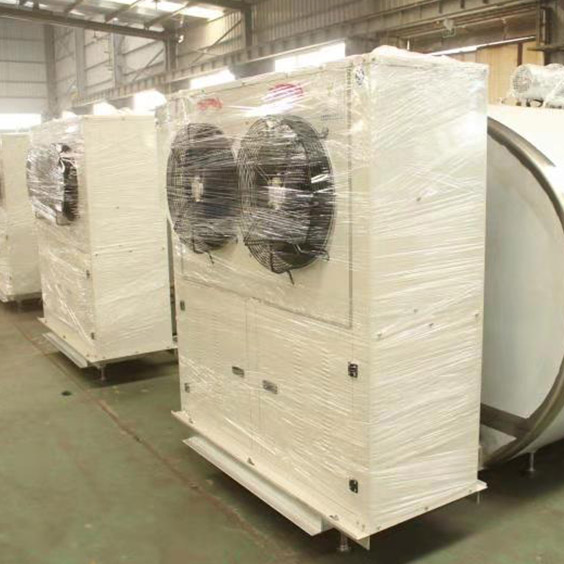

Refrigerator The compressor Valley wheel vortex compressor
model ZB45
Refrigerating capacity 17800W
The power supply 3phase 4wire
380V 50Hz
The input power 3.89kw
refrigerant R22
The evaporator In the form of Huff honeycomb plate type evaporator
Cooling area（㎡） 3.9
The condenser Cooling way Air cooling
Condensation area 72㎡
The agitator Deceleration machine NMRV063-40-0.75
speed 35Revolutions per minute
Electric control Temperature control Digital display decay computer automatic controller
To protect the Overvoltage, undervoltage protection, leakage protection, compressor overload protection
Thermal insulation layer material Cast polyurethane，Thickness is 65 ㎜
performance 38 ℃ ambient temperature, the temperature rise of 2 ℃ or less 24 hours a day
CIP DN40 1
Import DN50 1
Export DN50 1
