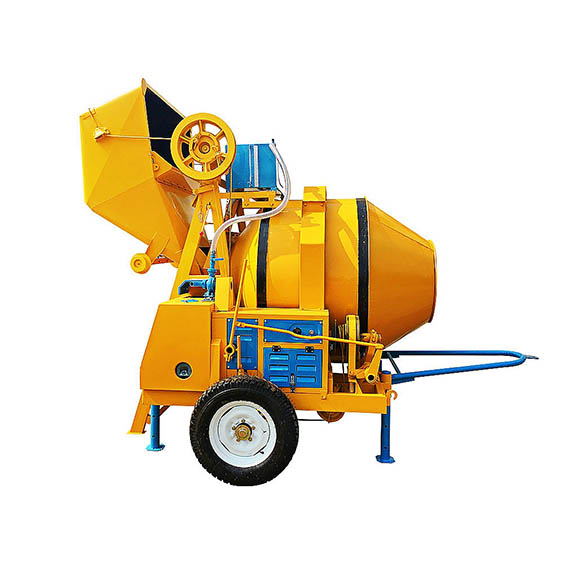

RDCM Concrete Mixer

The concrete mixer  of RDCM seies  is a device that homogeneously combines cement, sand, gravel, and water to form concrete. It is suitable in engineering of buildings, roads, hydropower, bridges and so on in many construction sites, especially in that of urban areas.

Product-Features

The concrete mixer is a device that homogeneously combines cement, sand, gravel, and water to form concrete. It is suitable in engineering of buildings, roads, hydropower, bridges and so on in many construction sites, especially in that of urban areas.

Specification

Model RDCM350-6E RDCM350-11D
Capacity of loading(L) 560 560
Capacity of discharging(L) 350 350
Drum thickness(mm) 5 5
Hopper thickness(mm) 3 3
Output( cbm/hour) 10-14 10-14
Max. Towing speed(km/h) 20 20
Power Electric motor Diesel Engine
Power source(hp) 7.5 15/18
Overall Size (mm) 3100×2320×3070 3100×2320×3070
Total weight(kg) 1420 1850
