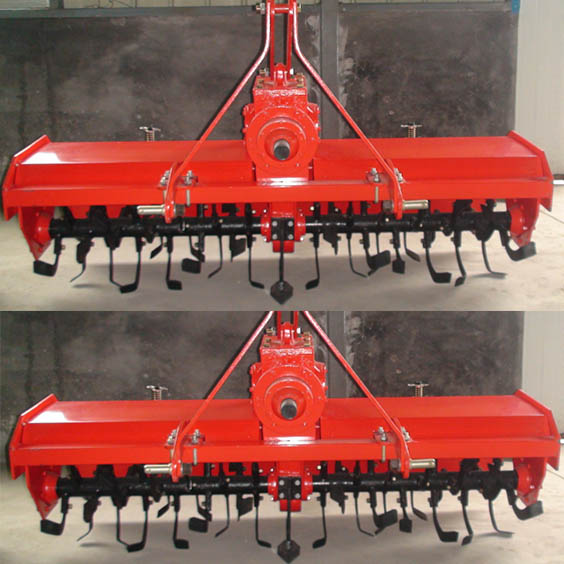

1GQN series of Rotary Cultivator is adopted middle gear transmission system, mounted with the tractor of 12-80HP. Tractor’s wheel tracks are completely covered after tillage as the working width is much wider. The quality is reliable and the performance is excellent. So it can be used on dry, paddy field and reduce the working time, laboring, and cost, etc.
The Rotary Cultivator has symmetric suspension of rotary blade, its big working width covers all wheel paths. It features reliable quality and is suitable for paddy and dry field.
| Model | 1GQN-100 | 1GQN-125 | 1GQN-140 | 1GQN-150 | 1GQN-160 | 1GQN-180 | 1GQN-200 | 1GQN-220 | 1GQN-250 | 1GQN-300 | ||
| 1GN-100 | 1GN-125 | 1GN-140 | 1GN-150 | 1GN-160 | 1GN-180 | 1GN-200 | 1GN-220 | 1GN-250 | 1GN-300 | |||
| Matched power
(hp) |
12-15 | 18-20 | 20-25 | 25-30 | 30-40 | 50-55 | 55-75 | 60-80 | 75-80 | 80~120 | ||
| (cm)
Working width |
100 | 125 | 140 | 150 | 160 | 180 | 200 | 220 | 250 | 300 | ||
| (cm) Working depth |
Dry land |
12-16 | 12-18 | |||||||||
|
paddy field |
14-16 | 14~20 | ||||||||||
| NO. of blades | 22 | 26 | 30 | 34 | 38 | 50 | 54 | 58 | 62 | 76 | ||
| Type of blade | IT225 | IT245 | ||||||||||
| Total weight (kg)
Total weight |
200 | 220 | 230 | 240 | 260 | 415 | 430 | 445 | 460 | 520 | ||
| 192 | 210 | 220 | 230 | 248 | 405 | 420 | 435 | 450 | 450 | |||
| (mm)
Overall Dimension |
(L) | 900 | 900 | 900 | 900 | 900 | 1020 | 1020 | 1020 | 1020 | 1020 | |
| (W) | 1050 | 1350 | 1500 | 1600 | 1700 | 1900 | 2100 | 2300 | 2600 | 3100 | ||
| (H) | 950 | 1000 | 1000 | 1000 | 1000 | 1152 | 1152 | 1152 | 1152 | 1152 | ||
| Linkage | Standard three-point mounted | |||||||||||
