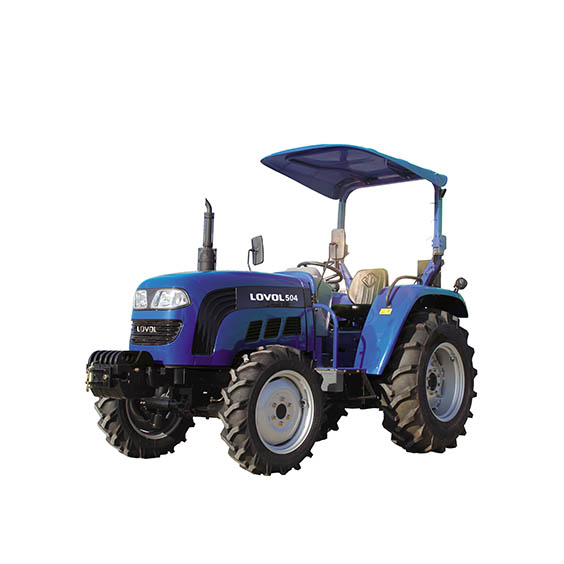

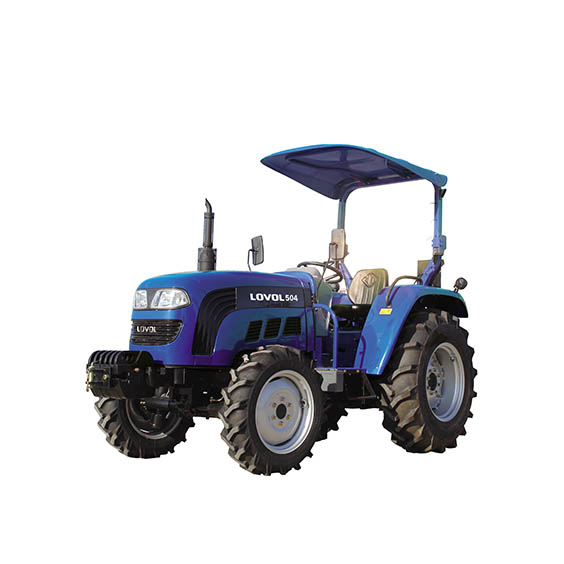

TB series Wheeled Tractor

  • Excellent Chinese four-cylinder direct injection diesel engines with sound fuel efficiency and high torque output;
  • Center console with simple structure, high cost efficiency and easy maintenance; side console for driving and riding comfort;
  • Optional single/double-acting clutches for different needs and operation; special ceramic material for friction plates with high reliability as well as low use and maintenance cost;
Get a Quote Send E-mail

Products

Product-Features

1.Excellent Chinese four-cylinder direct injection diesel engines with sound fuel efficiency and high torque output;

2.Center console with simple structure, high cost efficiency and easy maintenance; side console for driving and riding comfort;

3.Optional single/double-acting clutches for different needs and operation; special ceramic material for friction plates with high reliability as well as low use and maintenance cost;

4.Brand-new 8F+8R/12F+12R shuttle-type gear shifting with quick forward and reverse gear shifting; 8F+4R/16F+8R gears for multi-function operation;

5.Farmland tires, grass tires, engineering tires and many other tires to meet needs of different working conditions.

6.Powered by 4-cylinder in-line diesel engine, TB Series ranges in power from 35 to 60HP. Its low fuel consumption of 245g/kwh and the large torque output of 155-245N•m help you to get work done efficiently and economically. Euro-III and EPA certificated models are available.

7.TB Series Tractors adopt dual-action clutches from 10 to 11 inches made up of a special ceramic material, which can give you easier operation and reliable performance.

8.New front axle is used on the four-wheel-drive model, which can provide you reliable steering performance in harsh and paddy environments through dual-action steering cylinder and great waterproofness. Meanwhile, it has a minimum turning radius of 3.3m to help you operate easily in small spaces.

Specification

Model TB500 TB404 TB454 TB504 TB554 TB604 TB704
Engine A498 C490 A495 A498 A4K41T A4K41T QC4108/A4K43T
Rated Engine Power
ISO TR14396-R120 ECE		 hp/kW 50/36.8 40/29.4 45/33.1 50/36.8 55/40.4 60/44 70/51.5
Type 4 cylinders diesel
Rated Engine Speed rpm 2400 2400 2400 2400 2400 2400 2400
Max. torque/rpm Nm >180/
1600~1800		 >150/
1600~1800		 >170/
1600~1800		 >180/
1600~1800		 >215/
1600~1800		 >235/
1600~1800		 >260/
1600~1800
Rated PTO Power kW 31.2 25 28.1 31.2 34.4 37.5 44
Displacement ltr 3.168 2.672 2.977 3.168 3.857 4.087 4.32
Fuel Tank Capacity ltr 2nd generation 42/3rd generation 60 75 (with auxiliary fuel tank)
Transmission
Dry Dual Clutch (Ceramic disk) in. 10 10 10 10 10/11 10/11 11
8F+4R Collar shift ○ ○ ○ ○ ○ ○ *
8F+8R Synchro/Shuttle Shift ● ● ● ● ○ ○ *
12F+4R Collar/Shuttle shift ○ ○ ○ ○ ○ ○ ●
12F+12R Synchro/Shuttle Shift ○ ○ ○ ○ ● ● ○
16F+8R Collar/Creeper shift ○ ○ ○ ○ ○ ○ *
Speed range km/h 8F+4R/8F+8R/12F+12R：Forward（2.46-34.78）/ Reverse（2.15-30.49）
16F+8R：  Forward（0.37~-34.78）/ Reverse（0.55-12.1）。
Differential Lock ● ● ● ● ● ● ●
Double speed PTO 540/1000 rpm ● ● ● ● ● ● ●
Double speed PTO 540/760 rpm ○ ○ ○ ○ ○ ○ ○
Brakes
Form Wet disc, mechanical operation
Parking Brake Machinery，free-standing，hand operation
Air Trailer Brake ○ ○ ○ ○ ○ ○ ○
Front axle
4WD Front Axle ○ ● ● ● ● ● ●
2WD Front Axis ● ○ ○ ○ ○ ○ ○
Steering angle ° >40 >40 >40 >40 >40 >40 >40
Turning Radius Without Brake m 3.7±0.3 4.3±0.3 4.3±0.3
Turning Radius With One Side Brake m 3.3±0.3 3.8±0.3 3.2±0.3
Hydraulic power
Form Force control, position control, force/position independent control
Cat. I Three Point Hitch ● ● ● ● ● ● ●
Cat. II Three Point Hitch
Hydraulic  Flow l/min 2nd generation 30/3rd generation 35 2nd generation 30/3rd generation 35 2nd generation 30/3rd generation 35 2nd generation 30/3rd generation 35 2nd generation 30/3rd generation 35 2nd generation 30/3rd generation 35 2nd generation 30/3rd generation 38
Lift Capacity at 610mm behind Hitch Point kg 928 740 830 910 1020 1150 1530
Multiple directional valve 2 2 2 2 2 2 2
Cab and Driving Seat
ROPS ● ● ● ● ● ● ●
Full-view Cab ○ ○ ○ ○ ○ ○ ○
Air Conditioning ○ ○ ○ ○ ○ ○ ○
Removable cab ○ ○ ○ ○ ○ ○ *
Tires and Weights
Front Tires Standard 6.0-16 8.3-20 8.3-20 8.3-20 8.3-20 8.3-20 8.3-24
Optional 8.3-24 paddy land tires
Rear Tires Standard 12.4-28 12.4-28 12.4-28 12.4-28 14.9-28 14.9-28 14.9-30
Optional 14.9-24 14.9-24 14.9-24 14.9-24 11-32 paddy land tires
Structure Weight（ROPS）* kg 1870 1965 1965 1965 2190 2190 2500
Structure Weight（Cab）* kg 2050 2165 2165 2165 2370 2370 2630
Whole machine size
Length 3980 3980 4030 4100
Width 1650 1650 1650 1795
Height 2520 2520 2520 2675
Wheelbase 1966 1990 2040 2072
Ground clearance 400 310 310 410
           Key:  ●  Standard configuration ○  Optional *  Unavailable
