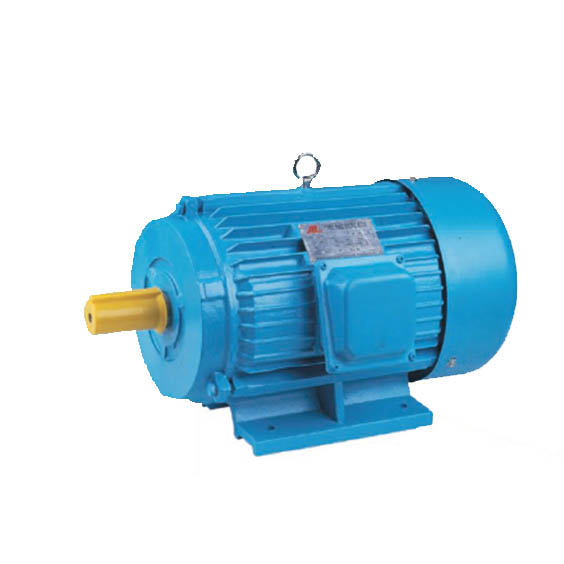

Three Phase Electrical Motor

Three Phase Electrical Motors, are widely used in many places. Such as machine tools, pumps, blowers, transport machinery, mixer, agriculture machinery and food machines, etc. The place have to be far away from combustible, explosive or corrosive gas, and special equipment.

Get a Quote Send E-mail

Products

Product-Features

Y series motors are widely used in many places, where do not exist combustible, explosive or corrosive gas, and special equipment, such as machine tools, pumps, blowers, transport machinery, mixer, agriculture machinery and food machines, etc.

Specification

Model Output power/voltage(kW/V) Electric Rotation speed(rpm) Efficiency(%) Power Starting Starting electric current Maximum
Current(A) factor torque torque
Y801-2-1HP 0.75/380 1.5 2830 75 0.84 2.2 6.5 2.3
Y802-4-1HP 0.75/380 2 1390 74.5 0.76 2.3 6 2.3
Y802-2-1.5HP 1.1/380 2.5 2830 77 0.86 2.2 7 2.3
Y90S-4-1.5HP 1.1/380 2.8 1400 78 0.78 2.3 6.5 2.3
Y90L-4-2HP 1.5/380 3.7 1400 79 0.79 2.3 6.5 2.3
Y90S-2-2HP 1.5/380 3.4 2840 78 0.85 2.2 7 2.3
Y90L-2-3HP 2.2/380 4.8 2840 80.5 0.86 2.2 7 2.3
Y100L1-4-3HP 2.2/380 5 1430 81 0.82 2.2 7 2.3
Y112M-4-5.5HP 4/380 8.8 1440 84.5 0.82 2.2 7 2.3
Y112M-2-5.5HP 4/380 8.2 2890 85.5 0.87 2.2 7 2.3
Y132S-4-7.5HP 5.5/380 11.6 1440 85.5 0.84 2.2 7 2.3
Y132S1-2-7.5HP 5.5/380 11.1 2900 85.5 0.88 2 7 2.3
Y132M-4-10HP 7.5/380 15.4 1440 87 0.85 2.2 7 2.3
Y132S2-2-10HP 7.5/380 15 2900 86.2 0.88 2 7 2.3
Y160M-4-15HP 11/380 22.6 1460 88 0.84 2.2 7 2.3
Y160M1-2-15HP 11/380 21.8 2930 87.2 0.88 2 7 2.3
Y160L-4-20HP 15/380 30.3 1460 88.5 0.85 2.2 7 2.3
Y160M2-2-20HP 15/380 29.4 2930 88.2 0.88 2 7 2.3
Y180M-4-25HP 18.5/380 35.9 1470 91 0.86 2 7 2.2
Y180L-4-30HP 22/380 42.5 1470 91.5 0.86 2 7 2.2
Y200L-4-40HP 30/380 56.8 1470 92.2 0.87 2 7 2.2
Y225M-6-40HP 30/380 59.5 970 90.2 0.85 1.7 6.5 2
Y225S-4-50HP 37/380 70.4 1470 91.8 0.87 1.9 7 2.2
Y225M-4-60HP 45/380 84.2 1470 92.3 0.88 1.9 7 2.2
Y250M-4-75HP 55/380 103 1480 92.6 0.88 2 7 2.2
Y280S-2-100HP 75/380 139 2970 92 0.89 2 7 2.2
Y280S-4-100HP 75/380 140 1480 92.7 0.88 1.9 7 2.2
Y280M-4-120HP 90/380 164 1480 93.5 0.89 1.9 7 2.2
Y315S-4-150HP 110/380 201 1480 93.5 0.89 1.8 6.8 2.2
